Operational Transform Control Algorithms


Operations represent the updates or deltas to be applied to the database. Let operation O be applied on state S1 to get state S2.

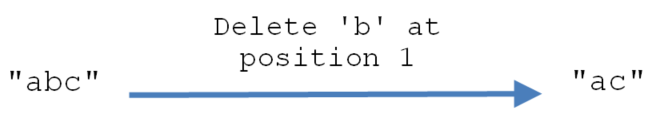

An example might be the deletion of a character within a string variable:

Operation on text

We call S1 the input state and S2 the output state of operation O. This state of affairs is expressed in the following equation:

Apply operation equation

Operations don’t necessarily commute

Function composition is associative but not commutative.

Associative: (f∘g)∘h = f∘(g∘h)

Commutative: f∘g = g∘f

Similarly operations don't commute in general, meaning they can't generally be applied in different orders.

Definition: We say O1, O2 commute if S ⊙ O1 ⊙ O2 = S ⊙ O2 ⊙ O1

Context equivalent and context serialised operations

Let O1, O2 be concurrent operations (i.e. O1 || O2).

Definition: We say operations O1 ,O2 are context equivalent if they share the same input state.

Definition: We say operations O1 ,O2 are context serialised if the output state of O1 is the input state of O2.


Inclusion Transformation (IT)

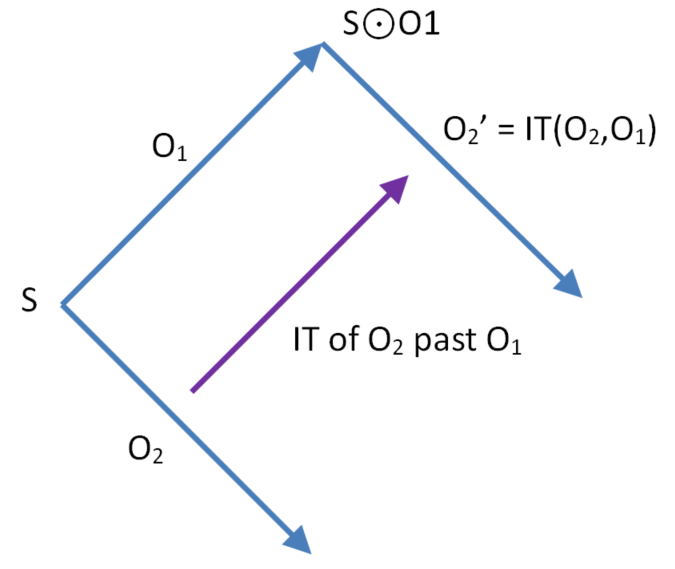

Let O1 ,O2 be context equivalent operations with input state S. The following diagram depicts the inclusion transform of O2 past O1 to give O2’. O2’ preserves the intention of O2. The input state of O2’ is S⊙O1.

Inclusion transform

Exclusion Transformation (ET)

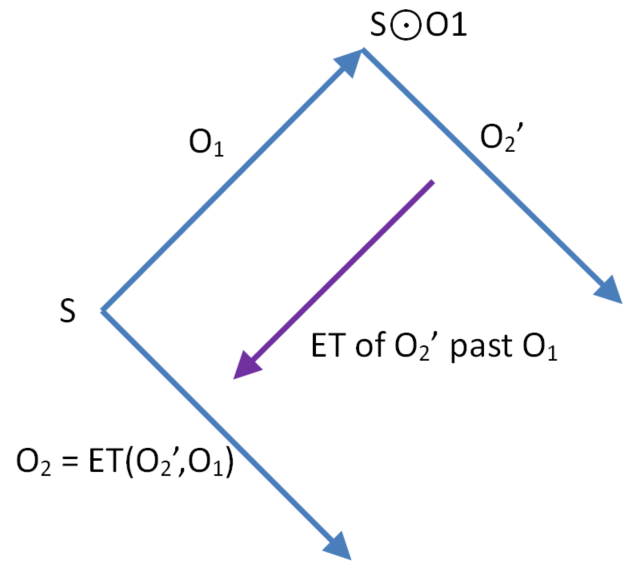

Let S be the input state of operation O1 and let O1,O2’ be context serialised. The following diagram depicts the exclusion transform of O2’ past O1 to give O2. O2 preserves the intention of O2’. The input state of O2 is S.

Exclusion transform

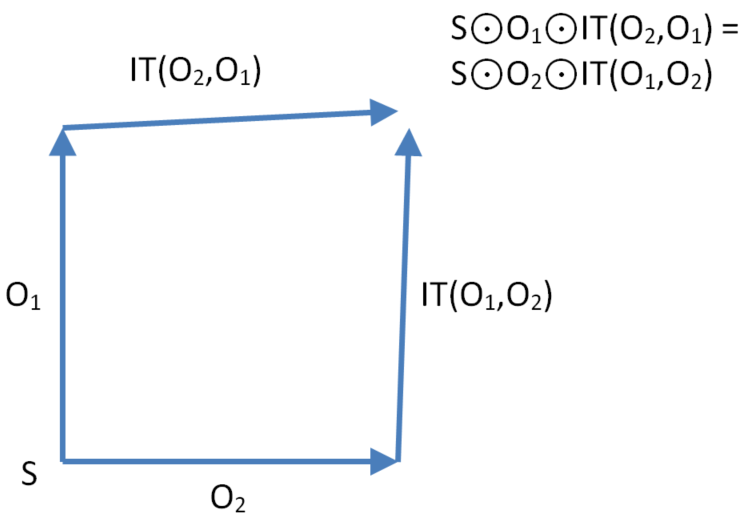

Transformation property TP1 ensures two sites converge to the same state

Transformation property 1 (TP1)


Let O1, O2 and O3 be context equivalent operations. Transformation property TP2 means transforming operation O3 either past O1 then IT(O2,O1) or past O2 then IT(O1,O2) gives the same result.

Transformation property 2 (TP2)

Sufficient conditions for convergence

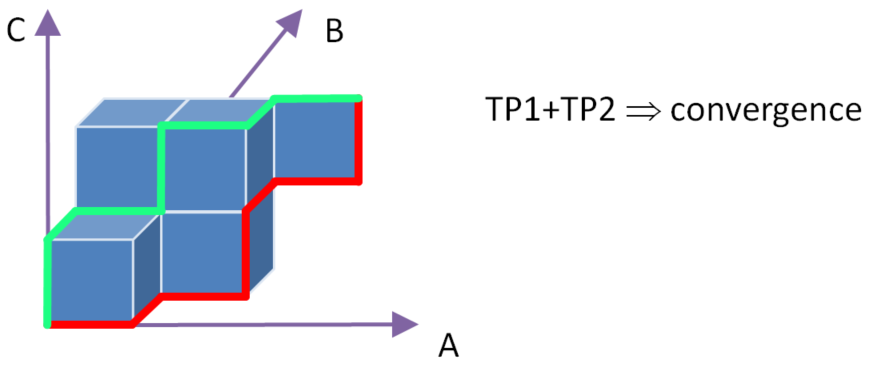

TP1+TP2 implies convergence for different paths through the lattice


From an inductive definition of the lattice, In 1996 Ressel et al gave an inductive proof of convergence (using induction on the magnitude of the vector time).

OT approaches which don’t satisfy TP2

There are a number of approaches to OT which fail to satisfy condition TP2 (such as the approach used in Google Docs or Google Wave), and this imposes various limitations on the implementation:

Dual IT

Let O1 and O2 be context equivalent operations. DualIT refers to the calculation of both inclusion transforms. In the diamond below the two operations on the left are transformed past each other to give the two operations on the right.

Dual inclusion transform

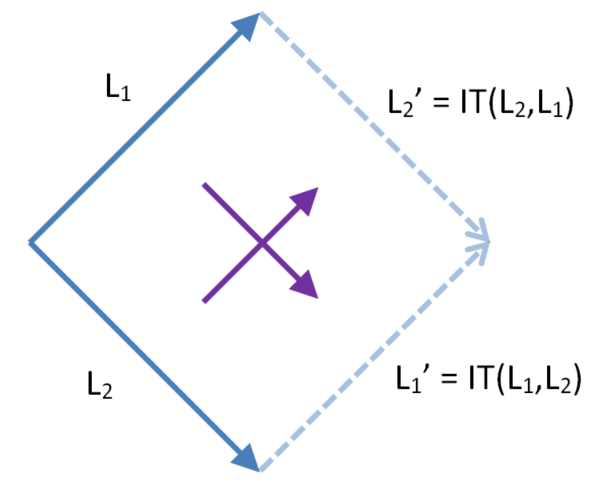

Similarly we can consider the dualIT of context equivalent lists of operations L1, L2 (we write L1 || L2 to mean the lists are concurrent, meaning ∀O1∈L1 ∀O2∈L2 O1||O2)

Dual inclusion transform on lists

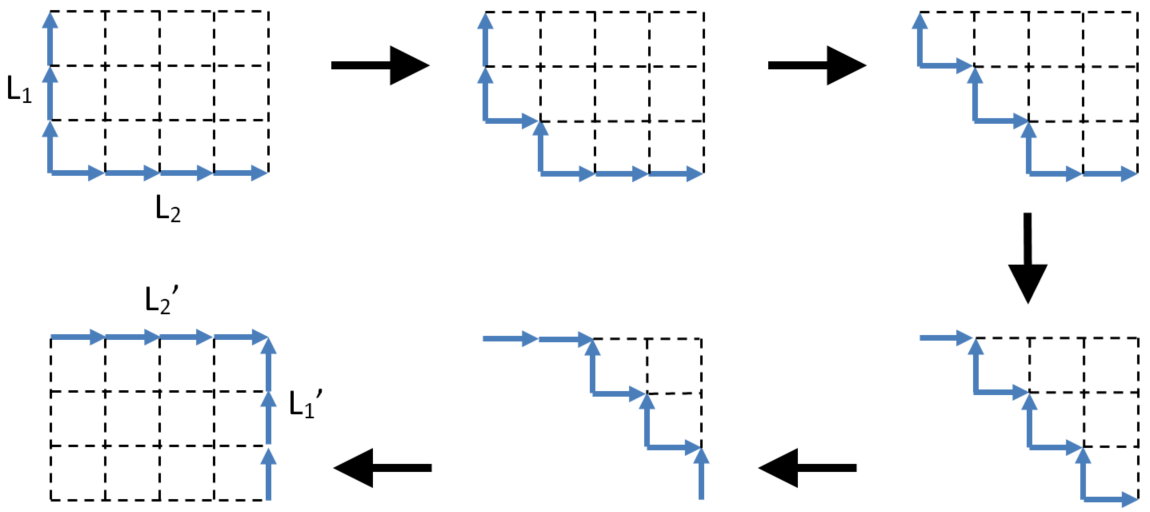

The following diagram shows how we can calculate IT(L2,L1) and IT(L1,L2). Unfortunately it has quadratic complexity, so it is not suitable for a practical implementation. In fact it implies the whole idea of using linear history buffers isn’t suitable for implementation.

Dual inclusion transform on lists algorithm

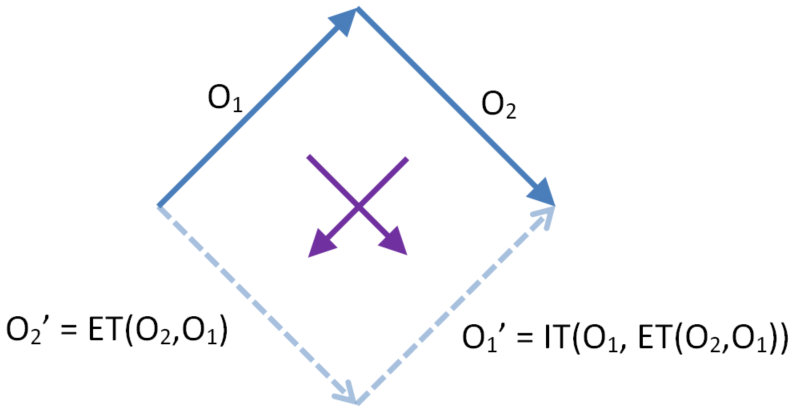

The transpose of context serialised operations O1,O2 is associated with applying them in the reverse order. In the following diagram the two operations on the top of the diamond are transformed to give the two operations on the bottom of the diamond:

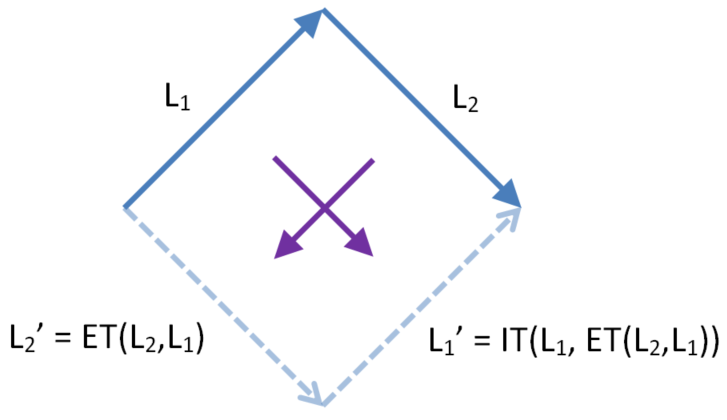

Similarly we can consider the transpose of context serialised lists of operations L1, L2

Transpose lists

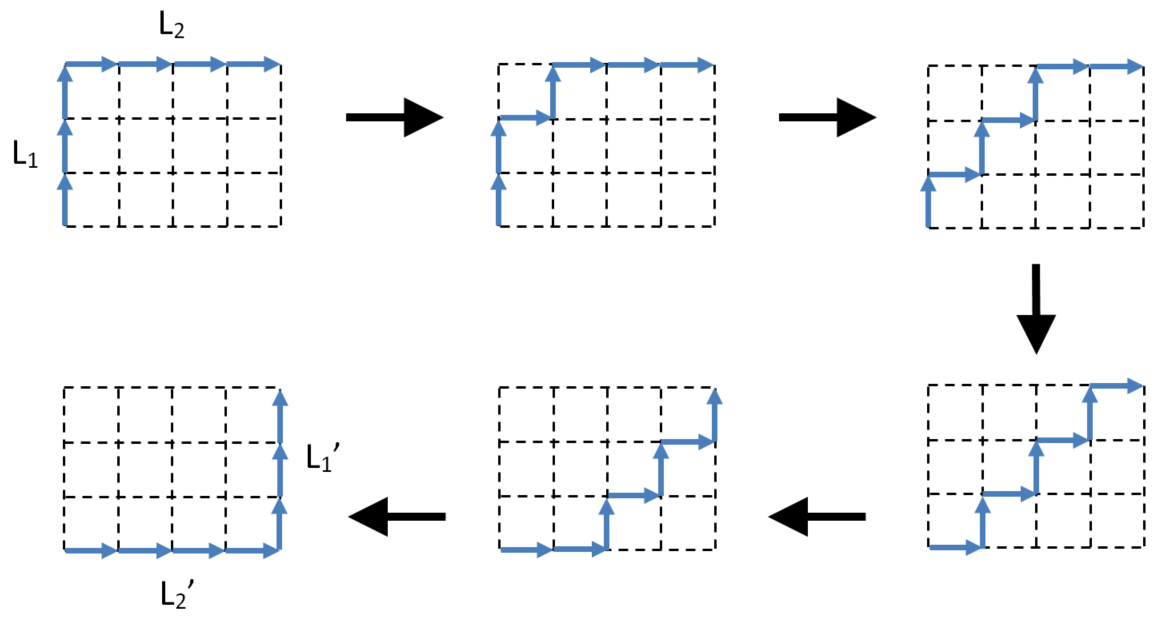

However just like DualIT the transpose of two lists is quadratic

Transpose Lists Algo

History buffers of two sites

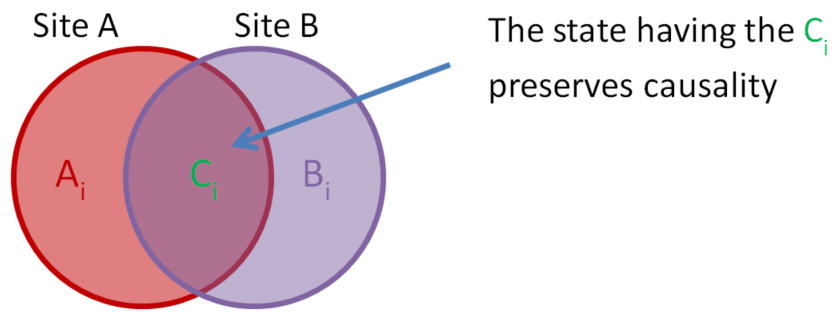

Consider the following Venn diagram depicting the sets of operations which have been applied so far at sites A and B

Operations venn diagram

The set of operations in common represents a state that preserves causality. Also for the union of all operations

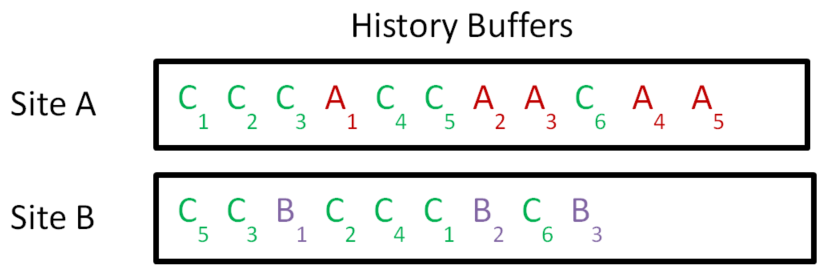

Consider that each site records the ordered list of operations it has applied so far (in the order they have been applied at that site). This list is called a History Buffer. For example:

Two sites history buffers

Site A has a mixture of the Ai and Ci. Site B has a mixture of the Bi and Ci.

Note that the common operations (the Ci) can be jumbled up with the Ai and Bi. Furthermore the Ci may not be in the same relative order in these two lists.

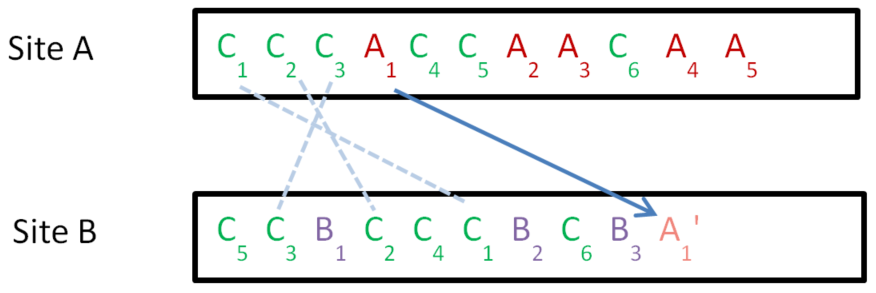

How do we synchronise the two sites? Consider for example that operation A1 is sent to site B. The context for A1 is the state in which {C1 C2 C3} have been executed. We must somehow transform A1 to A1’ such that it can be appended to the end of site B’s history buffer.

Two sites history buffers send operation

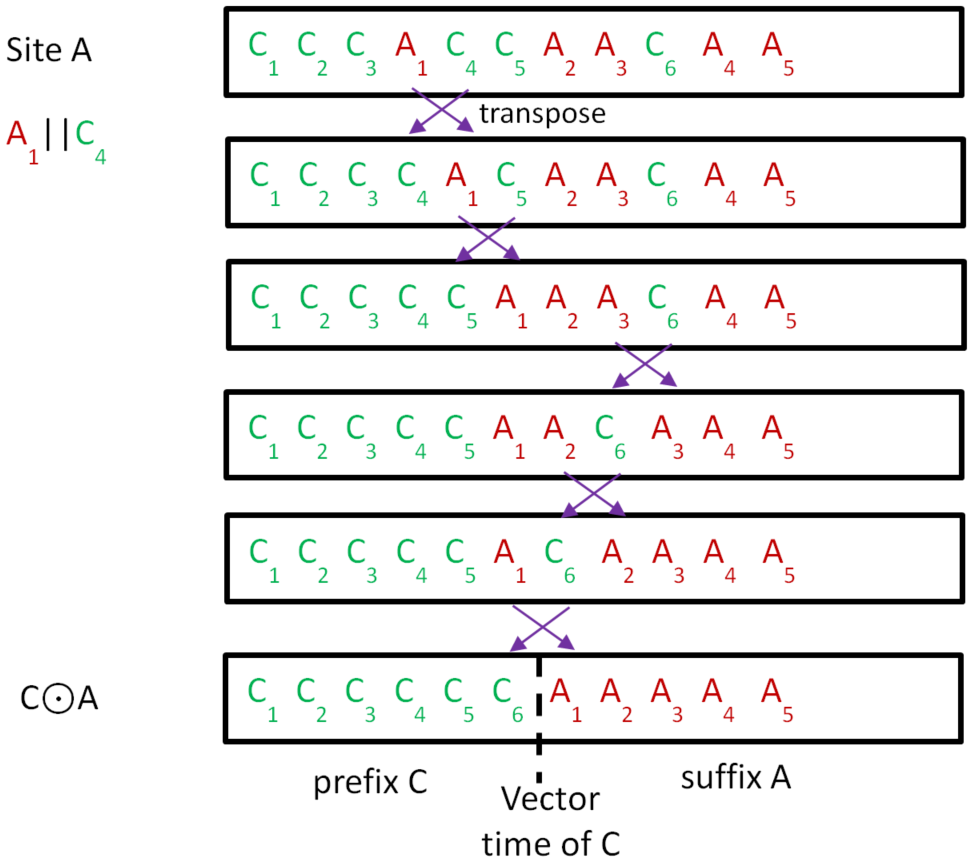

The history buffer of A has a mixture of C’s and A’s. We transpose adjacent pairs of Ai,Cj operations (i.e. where the Ai is to the left of the Cj) so all the C’s form a prefix and the A’s a suffix. This is possible because Ai || Cj. We can’t have Ai→Cj because that contradicts C preserving causality, and we can’t have Cj→Ai because Ai is to the left of Cj and the total order of the operations in a history buffer always respects the precedes partial order.

We call this a factorisation of the history buffer of site A with respect to a vector time V(C) to give C⊙A.


Synchronise two sites

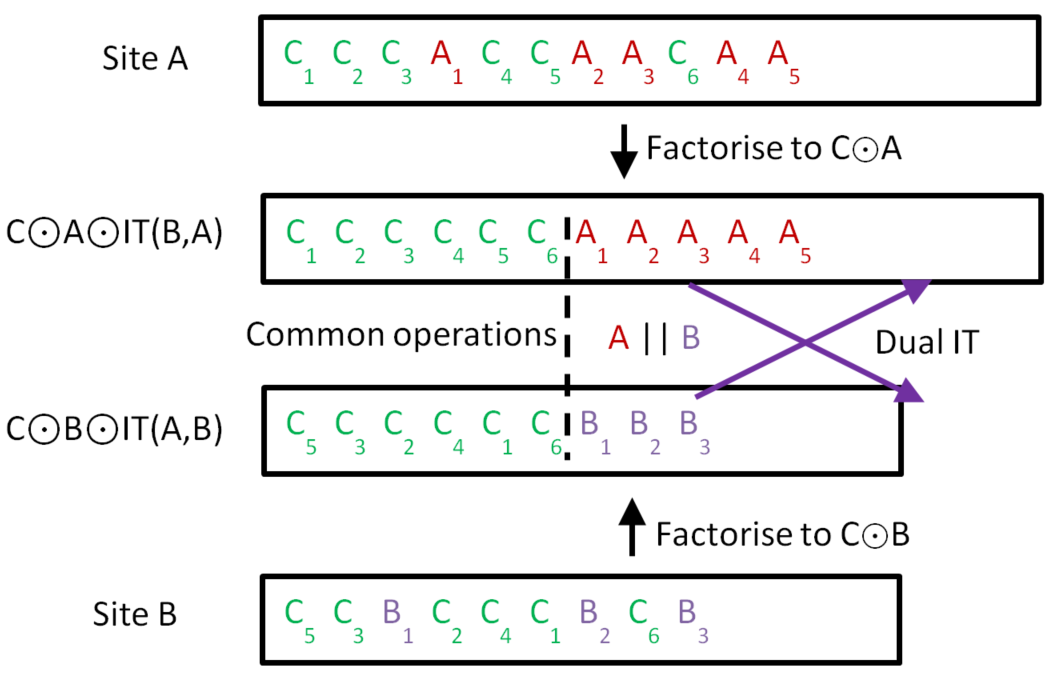

In the following diagram the history buffers of both site A and site B are factorised so that the common operations are in a prefix. That means that even though the common operations had been applied in a different order they result in the same state. Therefore the suffixes (the A’s and B’s) are applied in the same context and therefore a DualIT can be performed (noting that this is possible because A || B)

Sync Two Sites

But too inefficient

We have described a solution described in the literature, but it is far too inefficient to be useful in a production system, because dualIT and factorisation are quadratic algorithms.

Fortunately linear approaches exist. CEDA uses algorithms that are linear in the number of operations that need to be merged. This typically allows for merging hours of works in a fraction of a second.
